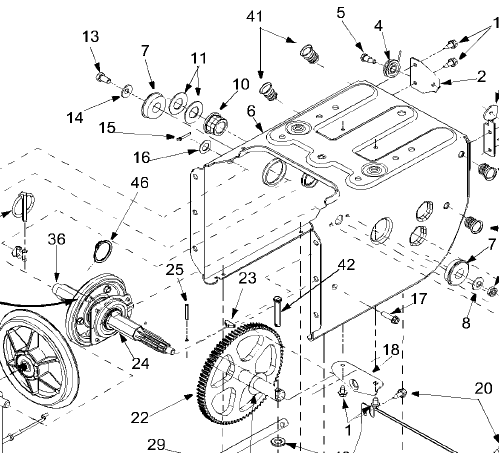

MTD Drive Train Assembly
(Scroll down for different model)
|
|
|
|
|
The following are the most popular parts. If you don't see what you're looking for please email us with
your part number and we will add it to the list.
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
732-04311
932-04311
Torsion Spring
|
|
|
|
|
|
|
|
|
|
656-0009
656-0012, 656-0012A
956-0012, 956-0012A
756-0648, 756-0648A
956-0648, 956-0648A
Friction Disc Assembly 6-3/4" Diameter with
bearing and center bolt included
|
|
|
|
|
|
|
711-04246A
Changes to 753CO5173 Complete Drive Kit
Includes # 1, 2, 4, 15, 16 and 27
plus bearings, washers, grease, etc.
|
|
|
| |
|
|
|
717-04129, 717-04129A
917-04129, 917-04129A
|
|
|
|
|
|
|
738-04095, 738-04095A
938-04095, 938-04095A
|
|
|
|
For rubber friction disc, bushings, cables,
etc
go to MTD, Bearings, Cables or Misc
|
|
|
| |
|
 |
|
|
27
|
|
|
|
|
41
|
|
|
|
|
|

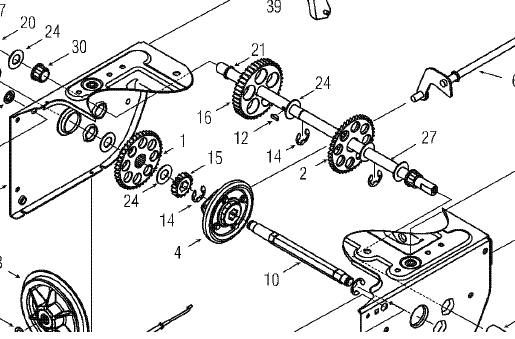

The following are the most popular parts. If you don't see what you're looking for please email or call
with your part number and we will add it to the list.
|
|
|
|
|
|
756-0625
956-0625
Cable Roller
|
|
|
|
|
|
|
|
|
|
|
|
|
717-04094
917-04094
717-1444
Hex Shaft
|
|
|
| |
717-04209
917-04209
917-04209A
Hex Shaft
|
|
|
| |
|
|
|
|
|
|
684-0042, 684-0042A, 684-0042B
684-0042C, 684-0042ABC
718-0231, 718-0301, 718-0301A
753-0602, 753-0602C
784-5617, 784-5617A
984-0042, 984-0042A
984-0042B 984-0042C,
618-0064, 753-0628
Friction Wheel Assembly
including friction wheel, bearing assembly,
bearing flange, etc.
|
|
|
|
656-0012, 656-0012A
956-0012, 956-0012A
Friction Disc Assembly 6-3/4" Diameter with
bearing and center bolt included
|
|
|
| |
For friction disc, bushings, cables, etc
Please go to MTD, Bearings, Cables or Misc
|
|
|
|
