Poulan Roper & Sears Lawn Mower Replacement Spindle Assembly
Scroll down for bearings, spindle shafts, pulleys, etc
|
|
Attention Poulan & Husqvarna owners
Most Poulan & Husqvarna part numbers are simply AYP numbers to which they added
531 or 532 in front. For example part number 532 14 65 27 is the same as 146527
|
|
|
|
|
|
173984, 138776, 157722, 532
17 39-84,
532 13 87-76,
532 15 77-22,
532173984
|
|
|
Self Tapping Bolts
5/16 x 1-1/4"
|
|
|
|
|
Self Tapping Bolts
3/8 x 1"
|
|
|
130794, 130797
180074, 183170
532130794
532110158
539110158
|
|
|

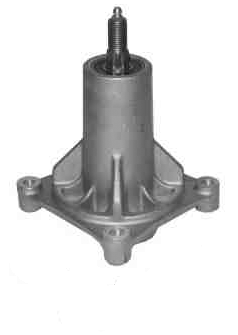

Star blade mount Includes pulley nut,
blade nut and washer, mounting
bolts and washers
Overall Height: 6-3/4" Housing Height
5-1/2"
3 bolt pattern 4-3/4" apart
Splined shaft on top for pulley
Use: 45-257 top bearing, 45-259
lower bearing
85-017 shaft, 44-370 pulley
|
|
|
|
|
Same as above but
housing only
|
|
|
|
|
Use with star center hole blades
Includes shaft, bearings, top nut and
blade bolt
Overall Height: 5"
Housing Height 3-1/2"
3 hole bolt pattern 4-7/8" apart
Use: 45-257 top bearing, 45-259
lower bearing
85-023 shaft, 44-370, 44-371 pulley
|
|
|
|
|
Same as above but Housing only
|
|
|
|
|
Use with star center hole blades
Includes shaft and bearings
Overall Height 5-3/4"
Housing Height 3-3/4"
4 hole bolt pattern 4" apart
Base 4-7/8" x 4-7/8" wide
Use: 45-257 top bearing, 45-259
lower bearing
85-040 shaft
|
|
|
|
|
Use with star center hole blades
Includes shaft and bearings
Overall Height 7-1/2"
Housing Height 5-1/2"
4 hole bolt pattern 4" apart
Base 4-3/4" x 4-3/4" wide
Use: 45-257 top bearing, 45-259
lower bearing
85-032 shaft
|
|
|
|
|
Same as above but
housing only
|
|
|
|
|
|
|
|
|
|
|
106040, 106040X
106041, 106041X
121704, 121704X
121705, 121705X
532121705, 532106041,
532121704
|
|
|
Top Pulley Dia: 4-7/8"
Bottom Pulley Dia: 4-1/4"
Distance between pulleys: 2"
Height: 6-3/8"
Blade Saddle: 2-1/4"
Base Dia: 5"
4 hole bolt pattern 2-3/4" apart
Use: 45-257 top and lower
bearings
|
|
|
101477
100699, 100699X
677A233, 677A14
105891, 121687
P121687X 532121676
121687XMS 121687XCS
121687X 121687
121676X 109685X
105722X 104926X
100699X POULAN
532-121687 ROPER
121687
Sears 105891, 121676
|
|
|
Pulley Dia: 5-1/2"
Overall Height 6-7/8"
Blade Saddle: 2 1/2"
Square base: 4-1/2 x 4-1/2"
4 hole bolt pattern 2-3/4" apart
Made with brake lip on pulley
Use: 45-257 top and lower
bearings
|
|
|
105477, 105477X
106038, 106038X
121617, 121617X
121657, 121657X
|
|
|
Center spindle on 50"cut
Top Pulley Dia: 5-1/4"
Lower Pulley Dia: 4-1/4"
Overall Height: 5-1/2"
Blade Saddle: 2 1/4"
8 sides base 4-1/2" Dia
4 hole bolt pattern 2-13/16" apart
Use: 45-257 top and lower
bearings
|
|
|
105483, 105483X
106037, 106037X
121622, 121622X
121658
121658, 121658X
136818
136819
|
|
|
Center and left spindle on 44" cut
Outer spindle on 50" cut - 20 HP
Pulley Dia: 4-3/8"
Overall Height: 3-3/4"
Blade Saddle: 2-1/4"
6 sides base 4-1/2" Dia
4 hole bolt pattern 2-13/16" apart
Use: 45-257 top and lower
bearings
|
|
|
124207, 124208
124207X, 124208X
532124207, 532124208
|
|
|
|
|
|
|
Use on spindles
# 130794, 143651, 174356, 187292
|
|
|
|
|
Star blade mount
OD: 3/4"
Length: 4-7/8"
|
|
|
|
|
Star blade mount
OD: 3/4",
Length: 7"
|
|
|
|
|
Spindle shaft includes bearings
fits star hole blade
12 tooth spline top end with 9/16"
threads
5-1/2" long
|
|
|
|
|
Spindle shaft includes bearings
fits star hole blade
12 tooth spline top with 9/16" threads
7-1/4" long
|
|
|
|
|
|
|
|
|
|
|
|
|
Spindle shaft includes lower bearing
fits star hole blade
Shaft Length: 5-3/4"
OD of Shaft: 3/8"
•OD of Bearing: 1-7/8"
|
|
|
|
|
Oregon 45-257
Top bearing for Oregon
82-014, 82-510, 82-015 and 82-026
OD: 1-9/16"
ID: 11/16"
|
|
|
|
|
Oregon 45-259
Lower bearing for Oregon
82-014, 82-510, 82-015 and 82-026
OD: 1-27/32" (almost 1-7/8")
ID: 3/4"
|
|
|
153535
173436
129861
177865
44-370
|
|
|
Spindle pulley
OD: 5"
ID: 5/8" spline
|
|
|
|
|
OD: 4-1/2"
ID: 5/8" splined
|
|
|
|
|
ID: 5/8"
OD: 4-5/8"
WIDTH: 7/8"
|
|
|
|
|
|
|
|
|
Mandrel Cover for 46" deck
|
|
|
|
|
Mandrel Cover for 48" deck
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
