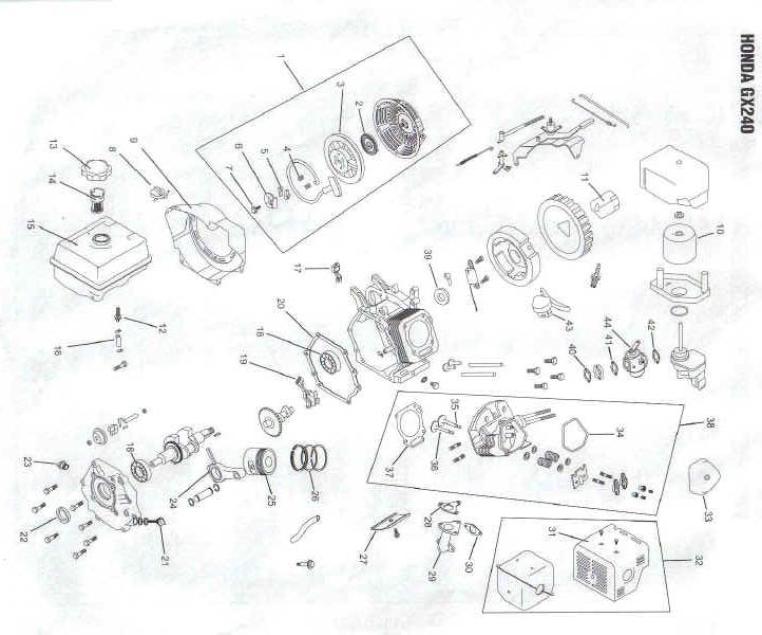

Honda GX240 parts diagram
This section is under construction
Please check again soon as parts are being added on a regular basis.
Reference # in diagram
Replaces Honda #
Order
1

2
Starter Spring 28442-ZE2-W01

4
Starter Pawl Spring 28443-ZE2-W01
5
Starter Pawl 28442-ZE2-W01


8
Switch 28442-ZE2-W01

10
Air Filter 17210-ZE2-505

12
Fuel Tank Joint 16955-ZE1-000
13
Fuel Cap 17620-ZH7-023
14
Fuel Strainer 17672-ZE2-W01

16
Fuel Line 95001-45300-40S



19
Oil Level Switch 15510-ZE2-033

21
Oil Cap and Indicator 15600-ZG4-003
22
Oil Seal PTO End 91201-890-003
23
Oil Cap 15600-ZG4-003
