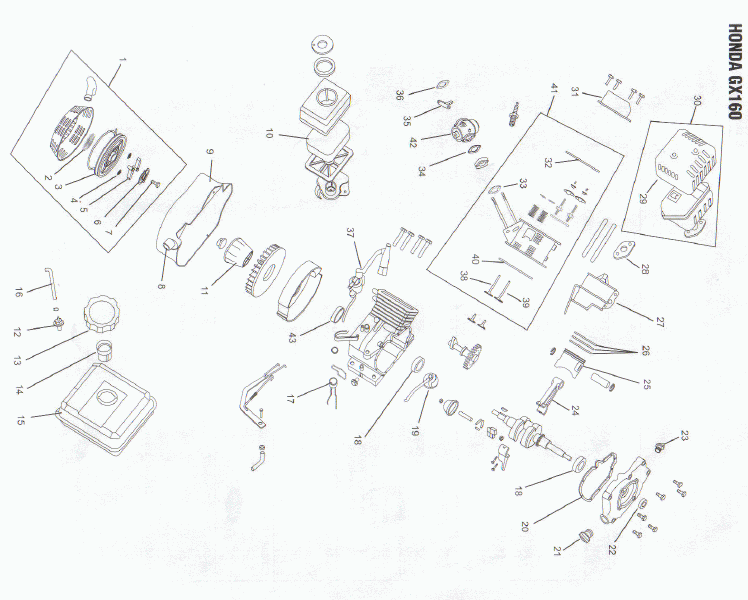

Honda GX160 parts diagram
|
|
This section is under construction
Please check again soon as parts are being added on a regular basis.
|
|
|
|
|
|
|
|
Complete Starter Ass. 28400-ZH8-013ZA
|
|
|
|
Starter Spring 28442-ZH8-003
|
|
|
|
Starter Pulley 28420-ZH8-013
|
|
|
|
Starter Pawl Spring 28443-ZH8-003
|
|
|
|
Starter Pawl 28422-ZH8-013
|
|
|
|
Starter Pawl Retainer 28433-ZH8-003
|
|
|
|
Starter Center Screw 90003-ZH8-003
|
|
|
|
|
|
|
Blower Housing 19610-ZE1-000ZA
|
|
|
|
|
|
|
Starter Cup 28451-ZH8-003
|
|
|
|
Fuel Tank Joint 16955-ZE1-000
|
|
|
|
|
|
|
Fuel Strainer 17672-ZE2-W01
|
|
|
|
Fuel Tank 17510-ZE1-020ZA
|
|
|
|
Fuel Line 95001-45200-40S
|
|
|
|
Diode Assembly 34150-ZH7-003
|
|
|
|
Crankshaft Ball Bearing 96100-62050-00
|
|
|
|
Oil Level Switch 15510-ZE1-033
|
|
|
|
Sump Cover Gasket 11381-ZH8-801
|
|
|
|
Oil Cap and Indicator 15600-ZE1-003
|
|
|
|
Oil Seal PTO End 91202-883-005
|
|
|
|
|
|
|
Connecting Rod (Std.) 13200-ZE1-010
|
|
|
|
Piston (Std.) 13101-ZF7-010
|
|
|
|
Ring Set (Std.) 13010-ZF1-023
|
|
|
|
Lower Cylinder Shield 19630-ZH8-000
|
|
|
|
Muffler Gasket 18381-ZH6-800
|
|
|
|
Muffler Shield 18320-ZF1-H01
|
|
|
|
Muffler Ass. 18310-ZF1-000
|
|
|
|
Rocker Cover 12310-ZE1-020
|
|
|
|
Rocker Cover Gasket 12391-ZE1-000
|
|
|
|
Carb. Insulator Gasket 16212-ZH8-800
|
|
|
|
Carb. Gasket 16221-ZH8-801
|
|
|
|
Choke Lever 16610-ZE1-000
|
|
|
|
Air Cleaner Gasket 16220-ZE1-020
|
|
|
|
Ignition Coil 30500-ZE1-033
|
|
|
|
Intake Valve 14711-ZF1-000
|
|
|
|
Exhaust Valve 14721-ZF1-000
|
|
|
|
Cylinder Head Gasket 12251-ZF1-000
|
|
|
|
|
|
|
Carb. Assembly 16100-ZH8-W50
|
|
|
|
|
|
